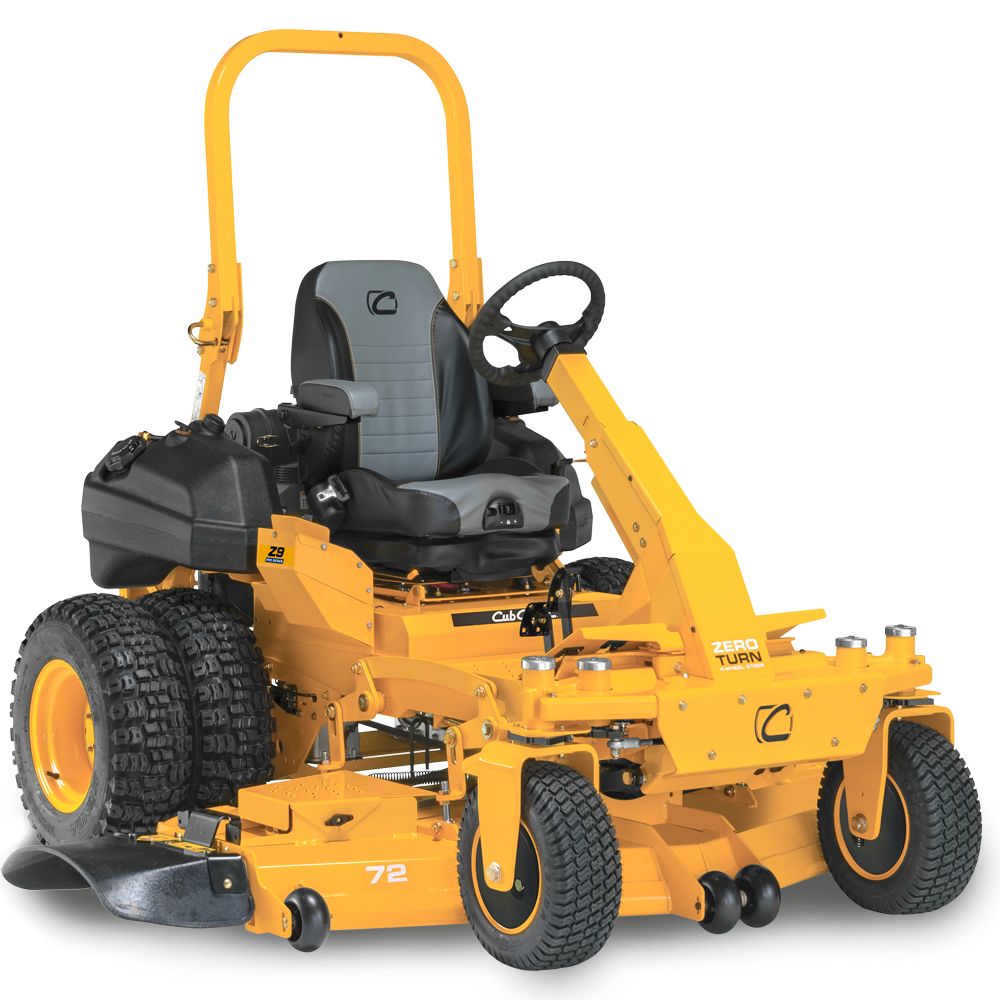

Cub Cadet Z9 183id

The new Z-Turn Z9 183id is a commercial zero-turn mower with extremely wide dual tires, designed to handle even the steepest slopes up to 25° inclination effortlessly. Additionally, it boasts an extremely robust and reinforced steel cutting deck, exceptional mowing performance, and air-suspension seat comfort.

Product Highlights:

• Incredible maneuverability and safety

• Dual hydrostatic transmission

• Unbeatable corrosion protection and durability

• Pro Z Air-Ride seat

• Thickest and strongest steel deck on the market

• Highest mowing performance

Product Details:

HIGHEST MOWING PERFORMANCE
Thanks to superior technical equipment, straight mowing lines, zero-turn pivots, and mowing on steep slopes are a breeze.

EFFORTLESS WORK AND COMFORTABLE RIDING

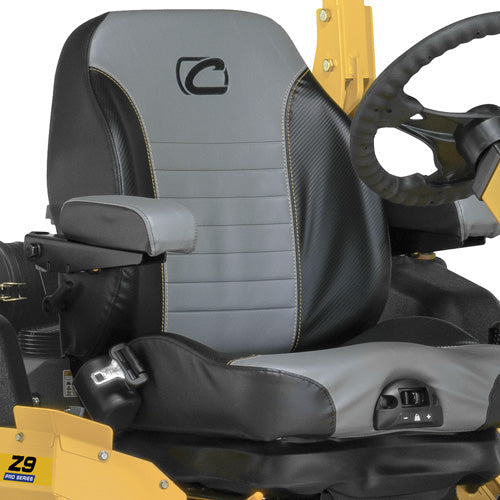

Enjoy a smooth ride throughout the workday with comfort features. With the exclusive Air-Ride seat, you can adjust the seat firmness to your personal preference.

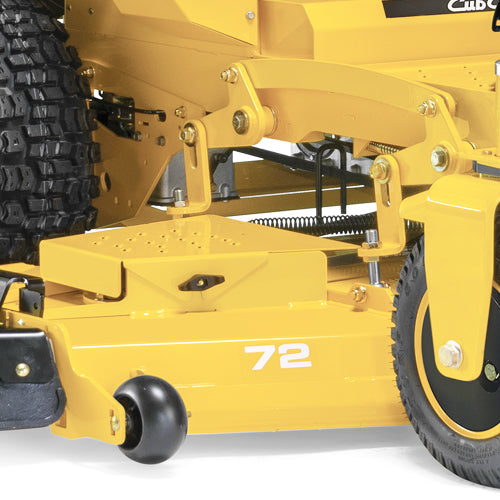

ELECTRIC HEIGHT-ADJUSTABLE MOWING DECK
Adjust the mowing deck to meet specific needs with just the push of a button.

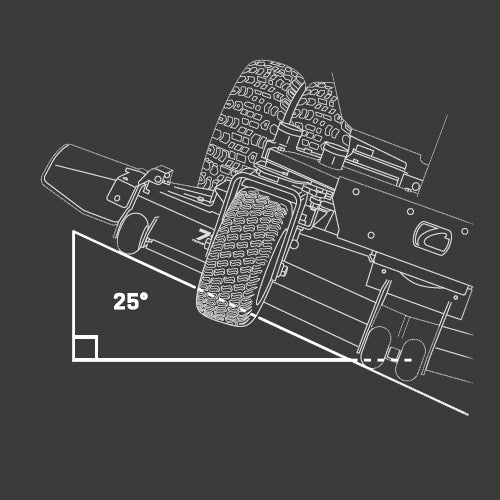

UNMATCHED HILL CLIMBING ABILITIES
Extremely wide dual tires and four-wheel steering provide exceptional stability and precision even on steep slopes with up to 25° inclination.

FUEL-EFFICIENT POWERHOUSE
The robust Kawasaki engine, equipped with electronic direct injection, combines high performance with relatively low fuel consumption.

RELIABLE AND SAFE
Cub Cadet offers a 3-year warranty or up to 1,000 operating hours on the new Z9 183id**.

Technical Specifications:

ENGINE (Z9 183id)

• Engine type: Kawasaki OHV

• Engine displacement (cm³): 999

• Power output (kW/min-1): 19.3 / 2600

• Start: V-TWIN twin-cylinder

• Fuel tank capacity (L): 2 x 34

• Lubrication: Oil lubrication

DRIVE SYSTEM

• Drive: Dual hydrostatic

• Transmission: Parker HTG 16 cc

• Maximum speed: 19.5 km/h (forward) / 10 km/h (reverse)

• Speed control: Dual foot pedal

CUTTING SYSTEM

• Recommended area performance (m²/h): 18,000

• Cutting width: 183 cm

• Cutting height: 26-127 mm

• Mowing options: 2-in-1

• Number of blades: 3

• Deck engagement: Electromagnetic with soft start

• Cutting stages: 17 positions

• Deck rollers: 4 + 2 front rollers

• Mulch kit: Standard

DISCHARGE SYSTEM

• Grass catcher (capacity): Side discharge

• Grass deflector: Standard

FRAME

• Bumper / Rear bumper: – / Standard

• Turning radius (cm): 0

• Tires (front/rear) (inches): 16 x 6.5 / 24 x 12

• Wheel bearings: Ball bearings

ELECTRICAL

• Hour meter / Service indicator: Standard / Standard

• Battery: 300 CCA AGM

• Safety systems: Roll-over protection bar

COMFORT

• Seat type: High back with armrests, adjustable

• Seat adjustment: Quick-adjust lever

• Steering wheel: Soft-grip

• Reverse mowing option (RevTEK): Standard

DIMENSIONS

• LpA / LwA / LwAg (dB): 87.3 / 102.5 / 105

• Vibration value (body) (K-factor) (m/s²): 0.7 / 0.35

• Vibration value (arm) (K-factor) (m/s²): 2.6 / 1.3

• Dimensions (L/W/H) (cm): 226 / 185 / 131

• Weight: 840 kg
