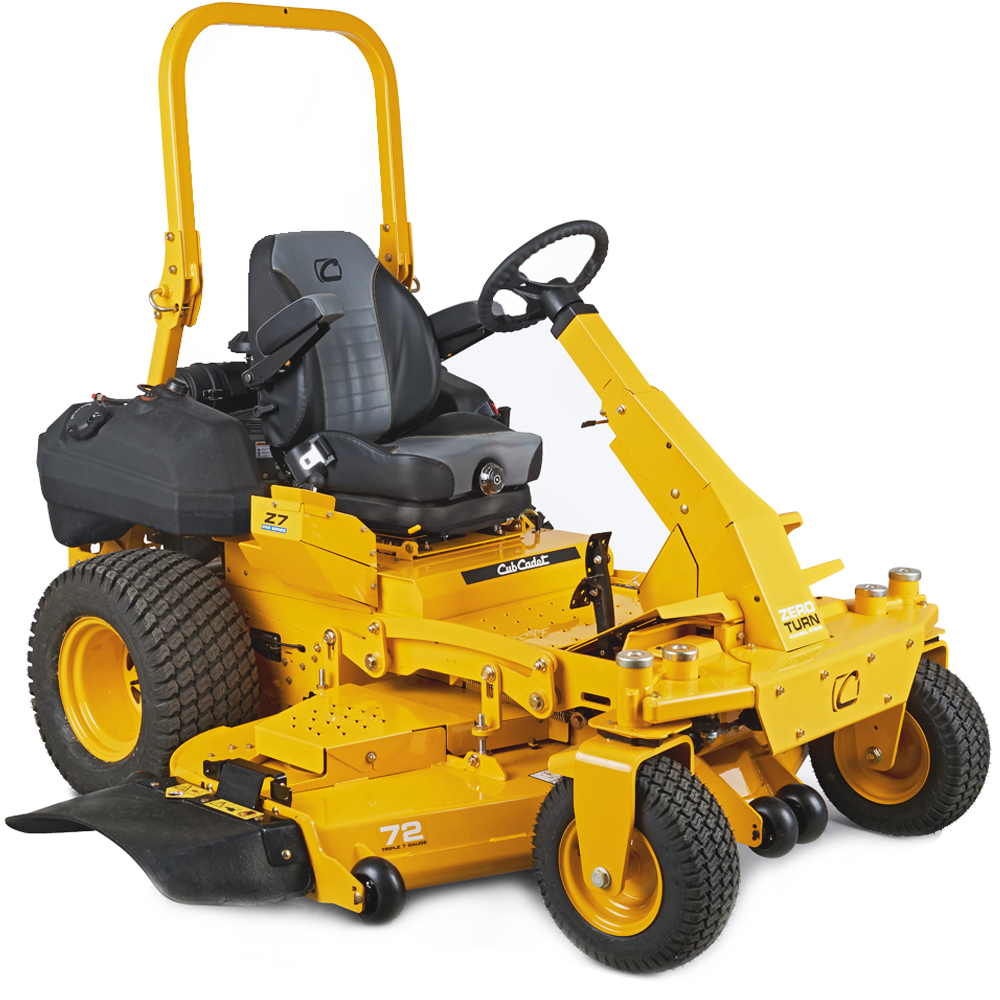

Cub Cadet Z7 183

The Z7 183 is the top-of-the-line model, requiring significantly less mowing time compared to any other Kawasaki OHV product. Those who demand the most from their mower will be impressed.

Product Highlights:

• Incredible maneuverability and safety

• Dual hydrostatic transmission

• Unbeatable corrosion protection and durability

• Pro Z Air-Ride seat

• Thickest and strongest steel deck on the market

Product Details:

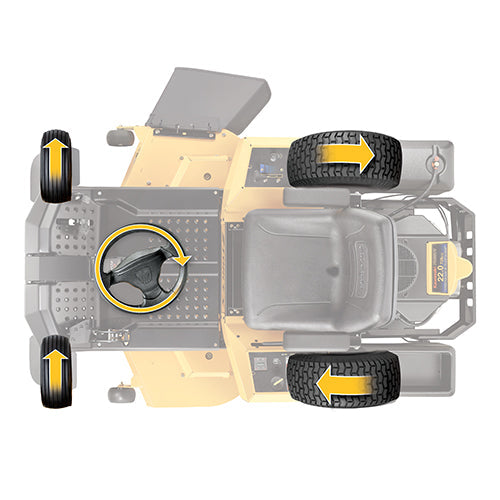

Incredible Maneuverability and Safety
With its unique stability and precise control, the Z-Series reaches areas where other zero-turn tractors fail. Our Syncro Steer® all-wheel steering gives you more control and safety on slopes than ever before. With unmatched tracking on inclines, even traditional tractors can’t compare, making the Z-Series the smartest choice.

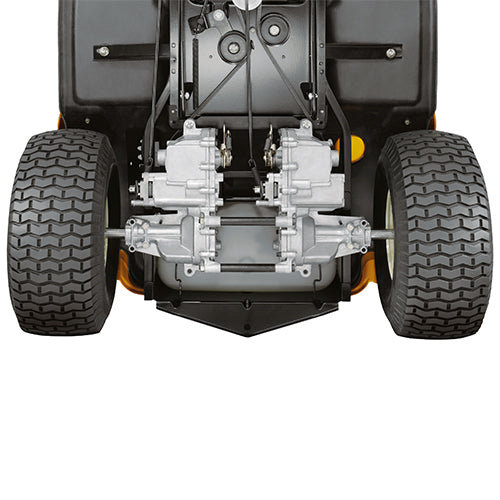

Dual Hydrostatic Transmission
A hydrostatic transmission for each rear wheel ensures maximum maneuverability.

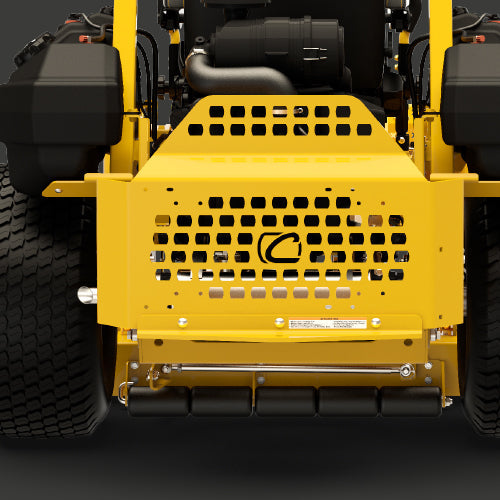

Unbeatable Corrosion Protection and Durability
Through a special “e-coat” process, the entire frame, front axle, and cutting deck are electrostatically primed and additionally powder-coated. This provides double protection against harsh daily conditions.

Kawasaki OHV, V-Twin Twin-Cylinder Engine
The engine is strong and efficient, designed to meet the highest demands.

Pro Z Air-Ride Seat
Adjust the seat firmness of the exclusive Air-Ride seat to your preference for maximum comfort.

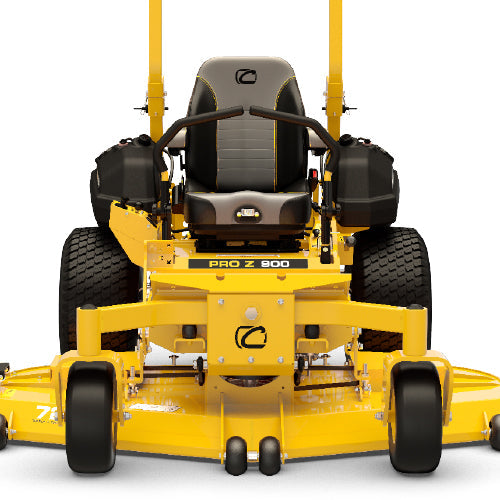

Reinforced Front End
Shock vibrations caused by rough terrain are absorbed by the new front-end construction, which combines optimal axle, hub, and fork size.

The Thickest and Strongest Steel Deck on the Market
The industry’s only deck made from triple 7-gauge steel is built to withstand the toughest conditions. The steel deck is protected by a 7-gauge steel cover and 7-gauge steel reinforcements both above and below.

Technical Specifications:

ENGINE (Z7 183)

• Engine type: Kawasaki OHV

• Engine displacement (cm³): 999

• Power output (kW/min-1): 18.0 / 2600

• Start: V-TWIN twin-cylinder

• Fuel tank capacity (L): 2 x 34

• Lubrication: Oil lubrication

DRIVE SYSTEM

• Drive: Dual hydrostatic

• Transmission: Parker HTG 14 cc

• Maximum speed: 19.5 km/h (forward) / 10 km/h (reverse)

• Speed control: Dual foot pedal

CUTTING SYSTEM

• Recommended area performance (m²/h): 18,000

• Cutting width: 183 cm

• Cutting height: 26-127 mm

• Mowing options: 2-in-1

• Number of blades: 3

• Deck engagement: Electromagnetic

• Cutting stages: 17 positions

• Deck rollers: 4 + 2 front rollers + rear deck rollers

• Mulch kit: Standard

DISCHARGE SYSTEM

• Grass catcher (capacity): Side discharge

• Grass deflector: Standard

FRAME

• Bumper / Rear bumper: – / Standard

• Turning radius (cm): 0

• Tires (front/rear) (inches): 16 x 6.5 / 24 x 12

• Wheel bearings: Ball bearings

ELECTRICAL

• Hour meter / Service indicator: Standard / Standard

• Battery: 230 CCA

• Safety systems: Roll-over protection bar

COMFORT

• Seat type: High back with armrests

• Seat adjustment: Quick-adjust lever

• Steering wheel: Soft-grip

• Reverse mowing option (RevTEK): Standard

DIMENSIONS

• LpA / LwA / LwAg (dB): 88 / 103.9 / 105

• Vibration value (body) (K-factor) (m/s²): 0.48 / 0.5

• Vibration value (arm) (K-factor) (m/s²): 4.2 / 1.5

• Dimensions (L/W/H) (cm): 226 / 185 / 131

• Weight: 732 kg
