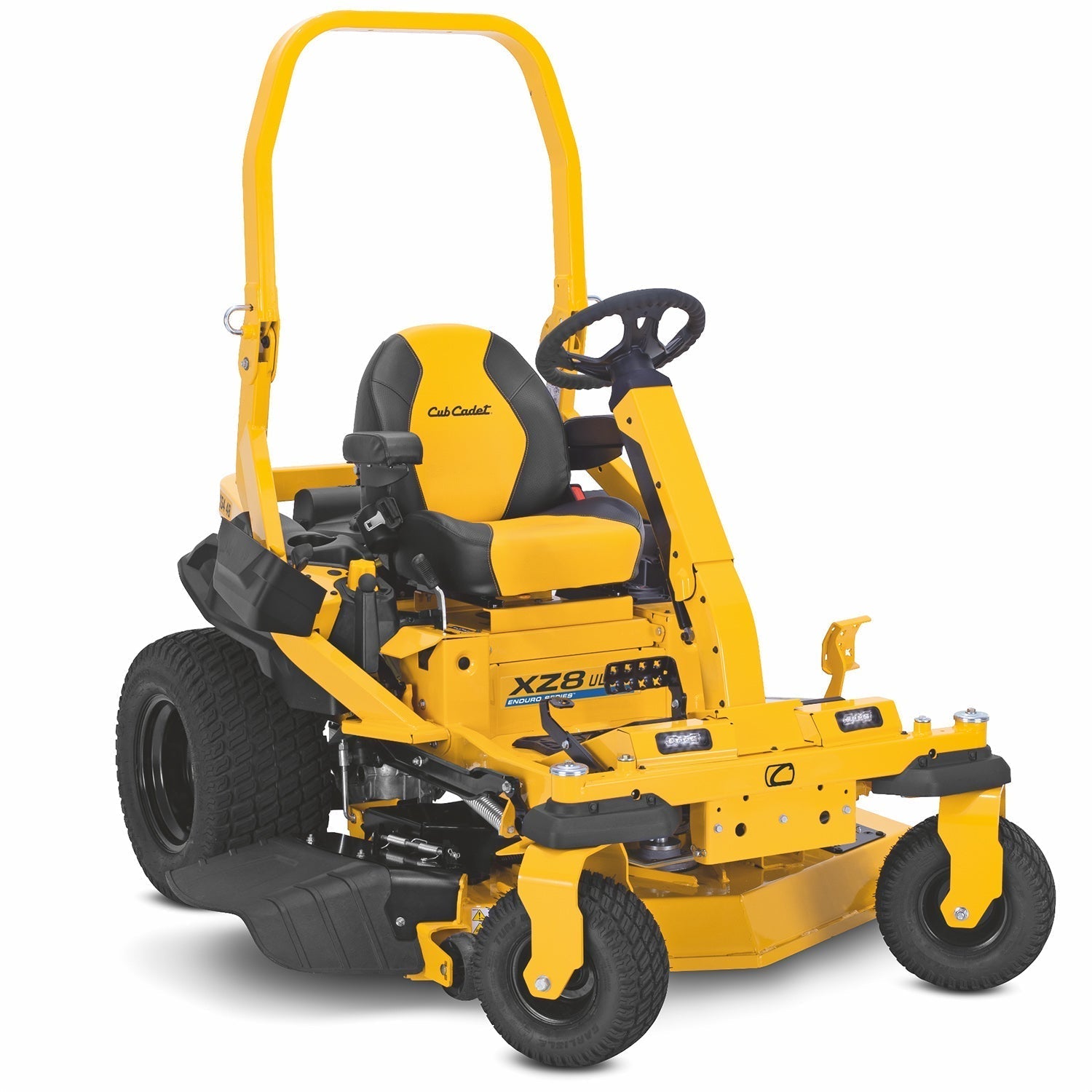

Cub Cadet XZ8 S137i ULTIMA

The control of vehicles and equipment via a steering wheel is something many people are familiar with. With the help of our innovative Synchro Steer® technology, you can now also work in a comfortable and stable position while maintaining your garden. This feature is exclusive to our Zero-Turn series. The new XZ8 models have been developed to mow precise lines.

Product Highlights:

• Solid roll-over protection

• Premium high-back seat

• Hydrostatic drive system

• Sturdy mowing deck

• Foot-controlled deck lift

• Zero-Turn

Product Details:

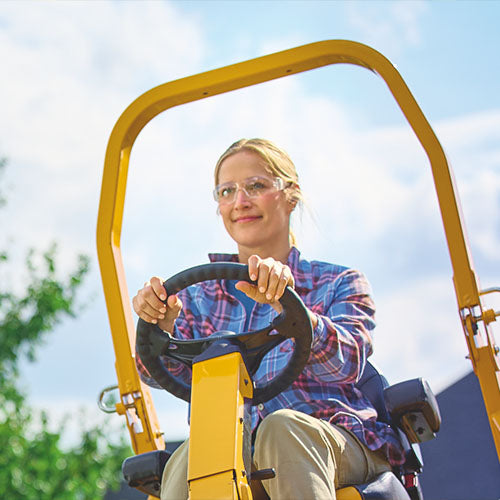

Solid Roll-Over Protection
Fully welded steel tube frame as standard equipment.

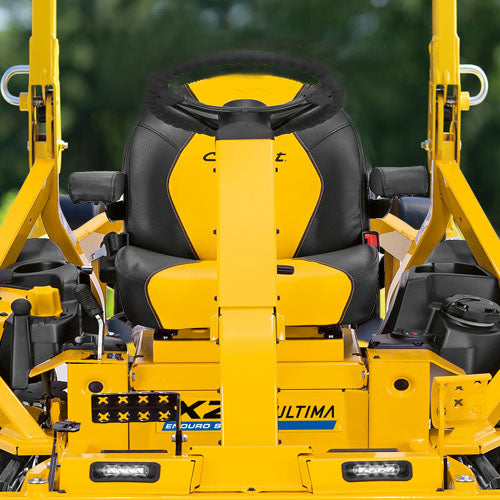

Premium Seat
With a high backrest for added comfort.

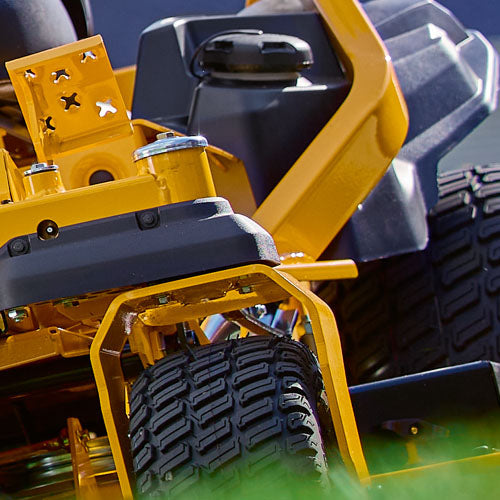

Robust Steel Tube Frame
Designed for high durability and robustness.

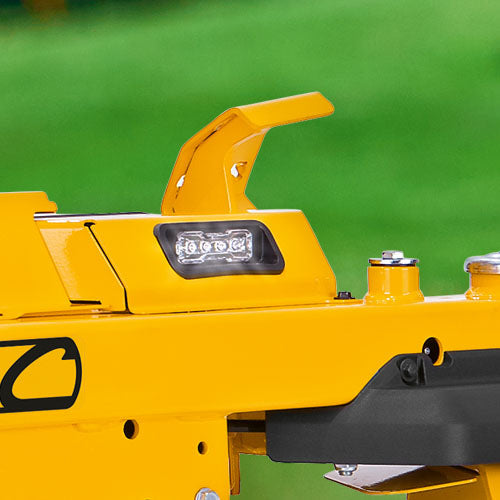

Foot-Controlled Deck Lift
Adjust the mowing height in 16 levels with a comfortable dial.

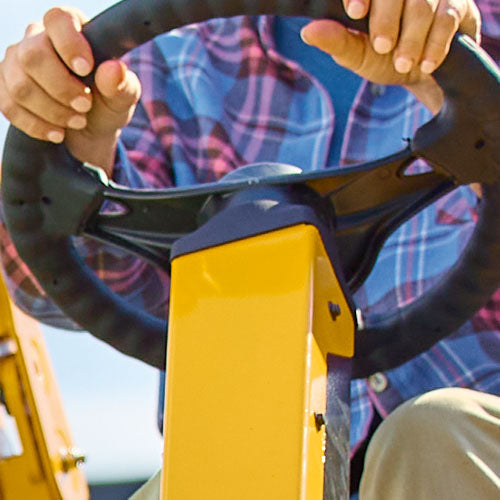

Hydrostatic Drive System
Ensures uninterrupted mowing performance.

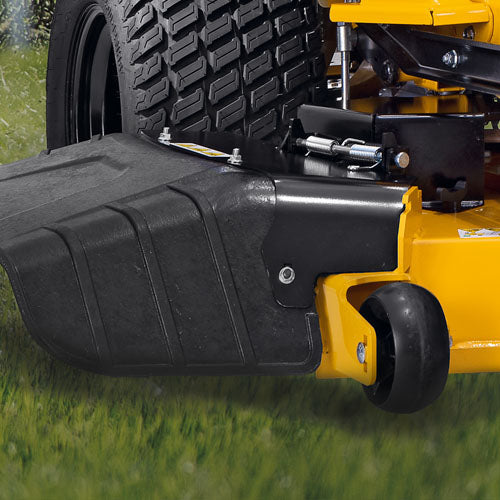

Massive Mowing Deck
Engineered for high performance and resistance.

Technical Specifications:

ENGINE (XZ8 S137i ULTIMA)

• Engine type: KOHLER with direct fuel injection

• Engine displacement (cm³): 747

• Power output (kW/min-1): 13.8 / 2500

• Start: V-TWIN cylinder

• Fuel tank capacity (L): 20.8

• Lubrication: Oil pump with oil filter

DRIVE SYSTEM

• Drive: Dual Hydrostatic (Hydrogear ZT3200)

• Speed control: Dual foot pedal

CUTTING SYSTEM

• Recommended area performance (m²/h): 13,000

• Cutting width: 137 cm

• Cutting height: 25-114 mm

• Number of blades: 3

• Mowing options: 3-in-1

• Deck engagement: Electromagnetic

• Cutting stages: 16 positions

• Deck rollers: 2

• Mulch kit: Standard

DISCHARGE SYSTEM

• Grass catcher (capacity): Optional 380

• Grass deflector: Standard

FRAME

• Bumper / Rear bumper: – / Standard

• Turning radius (cm): 0

• Tires (front/rear) (inches): 13 x 6.5 / 23 x 12

ELECTRICAL

• Headlights: LED

• Battery: 210 CCA AGM

• Hour meter / Service indicator: Standard / Standard

• Safety systems: Standard

COMFORT

• Seat type: High back with armrests

• Seat adjustment: Quick-adjust lever

• Steering wheel: Adjustable soft-grip steering wheel

• Toolbox: Standard

• Reverse mowing option (RevTEK): Standard

DIMENSIONS

• LpA / LwA / LwAg (dB): 89.9 / 104.3 / 105

• Vibration value (body) (K-factor) (m/s²): 0.4 / 0.2

• Vibration value (arm) (K-factor) (m/s²): 2.8 / 1.4

• Dimensions (L / W / H) (cm): N/A

• Weight: 449 kg
