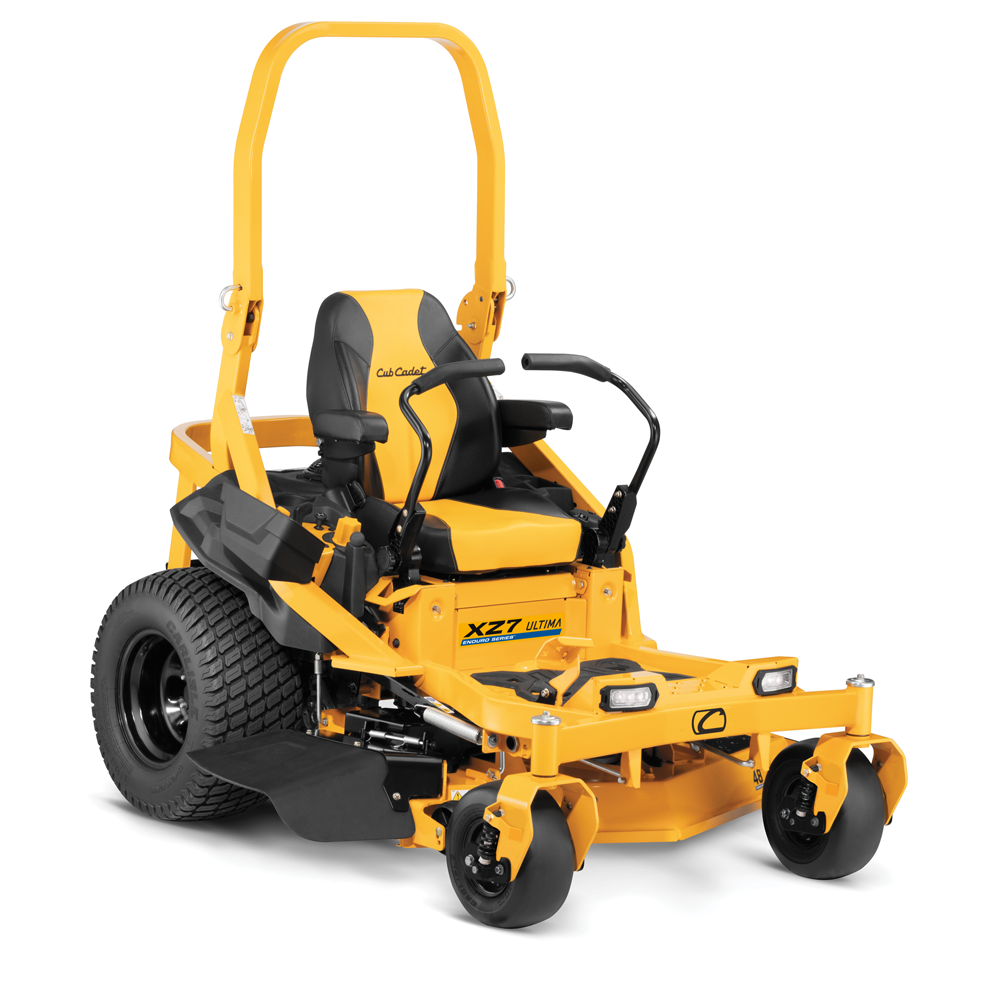

Cub Cadet XZ7 L152i ULTIMA

The top model of the ENDURO XZ Series impresses with enhanced stability and durability. It allows you to mow comfortably and with maximum convenience, even under the toughest conditions.

Product Highlights:

• Solid roll-over protection

• Versatility

• Ultra-bright LED headlights

• Sturdy mowing deck

• Foot-controlled deck lift

• Zero-Turn

Product Details:

Sturdy Mowing Deck
The robust steel tube frame and the welded, fully reinforced AeroForce Max™ deck provide the necessary strength and ensure consistently high cutting quality.

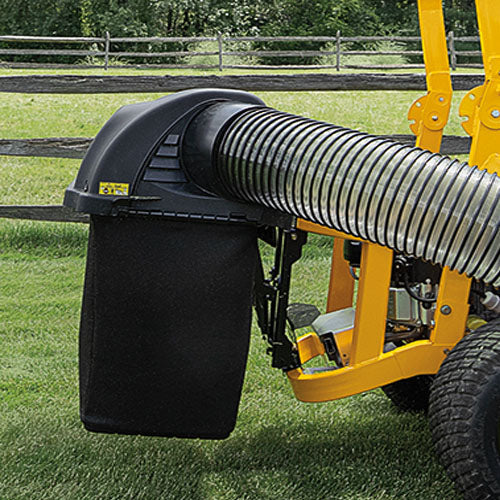

Outstanding Grass Collection
The AeroForce Max™ deck uses the airflow from the rotating blades to throw the clippings high into the optional grass catcher. This fills the bag to the brim without clumping.

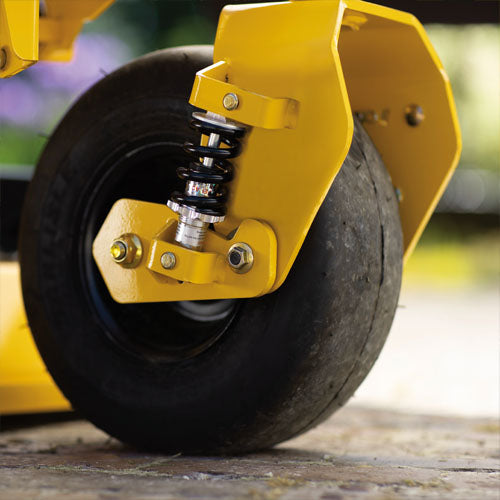

Suspended Front Wheel Suspension
Individually suspended wheels ensure a smooth ride with less vibration, even on rough lawns.

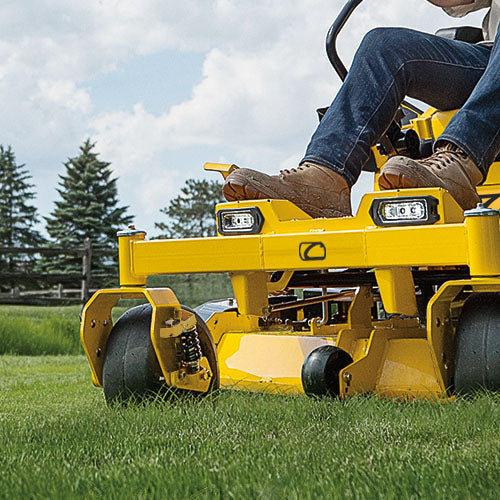

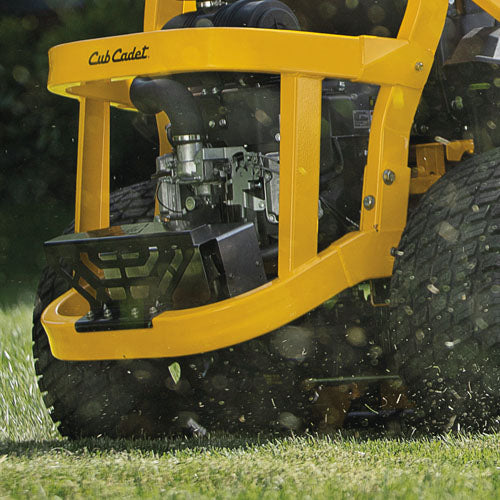

Guaranteed Longevity
We trust in the maximum durability and robustness of our new XZ7 models and offer a 3-year warranty or up to 500 working hours** – whether for commercial or private use.

Technical Specifications:

ENGINE (XZ7 L152i ULTIMA)

• Engine type: KOHLER with direct fuel injection

• Engine displacement (cm³): 747

• Power output (kW/min-1): 14.8 / 2700

• Start: V-TWIN cylinder

• Fuel tank capacity (L): 20.8

• Lubrication: Oil pump with oil filter

DRIVE SYSTEM

• Drive: Dual Hydrostatic

• Transmission: Hydrogear ZT3200 Charged

• Speed control: Steering lever

• Cruise control: Standard

CUTTING SYSTEM

• Recommended area performance (m²/h): 15,000

• Cutting width: 152 cm

• Cutting height: 25-114 mm

• Number of blades: 3

• Mowing options: 3-in-1

• Deck engagement: Electromagnetic

• Cutting stages: 16 positions

• Deck rollers: 2 + rollers

• Mulch kit: Standard

DISCHARGE SYSTEM

• Grass catcher (capacity): Optional 380

• Grass deflector: Standard

FRAME

• Bumper / Rear bumper: – / Steel tube frame

• Turning radius (cm): 0

• Tires (front/rear) (inches): 13 x 6.5 / 24 x 12

• Wheel bearings: Not specified

ELECTRICAL

• Headlights: LED

• Battery: 210 CCA AGM

• Hour meter / Service indicator: Standard / Standard

• Safety systems: Standard

COMFORT

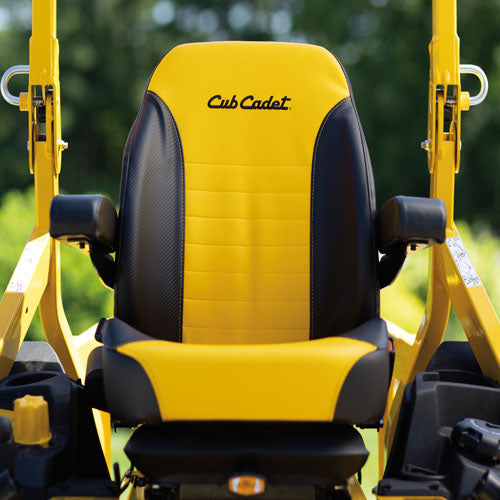

• Seat type: High backrest with armrests

• Seat adjustment: Quick-adjust lever

• Steering wheel: 2-way steering lever with comfort grips

• Toolbox: Standard

• Reverse mowing option (RevTEK): Standard

DIMENSIONS

• LpA / LwA / LwAg (dB): 97.2 / 104.7 / 105

• Vibration value (body) (K-factor) (m/s²): 1.0 / 0.5

• Vibration value (arm) (K-factor) (m/s²): 2.0 / 1.0

• Dimensions (L / W / H) (cm): 233 / 177 / 134

• Weight: 450 kg
