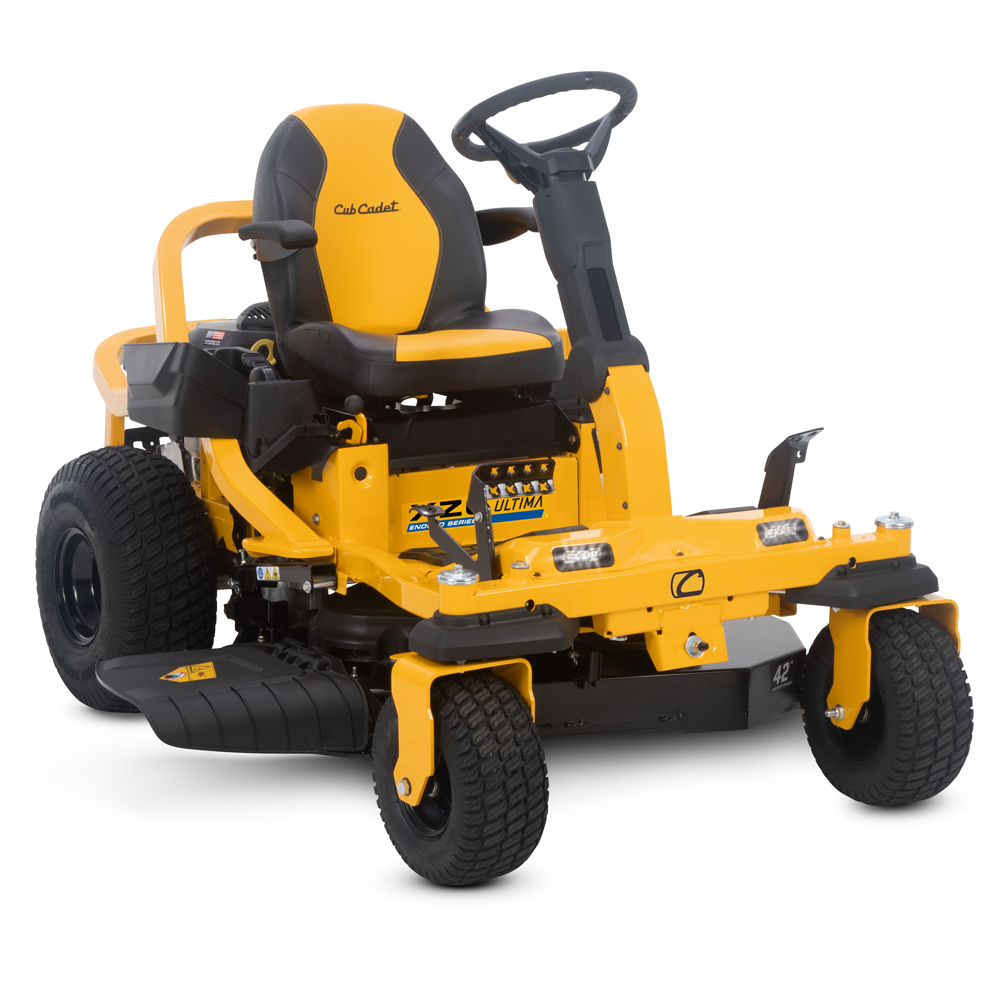

Cub Cadet XZ6 S117

The XZ6 Series provides you with everything you need. The Zero-Turn technology combined with easy steering wheel control and four-wheel steering gives you an indescribable feeling of stability and flexibility. An unbeatable combination of power and performance.

Product Highlights:

• Adjustable steering column

• Comfort seat with armrests

• Ultra-bright LED headlights

• Air-filled front tires

• Foot-controlled deck lift

• Zero-Turn

• Easy operation and versatility

Product Details:

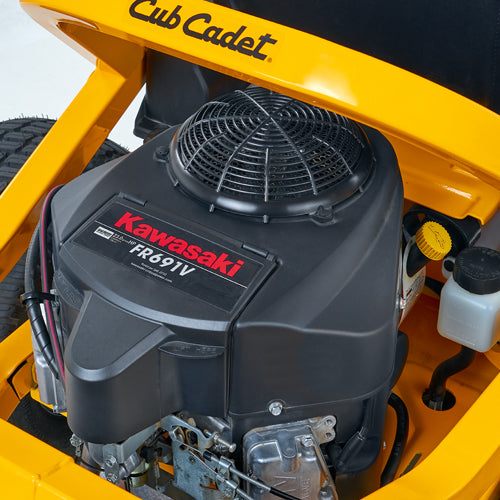

Extremely Powerful
Powered by high-performance Cub Cadet and Kawasaki engines, the XZ6 models reach up to 12 km/h, allowing you to mow up to 50% faster than front mowers.

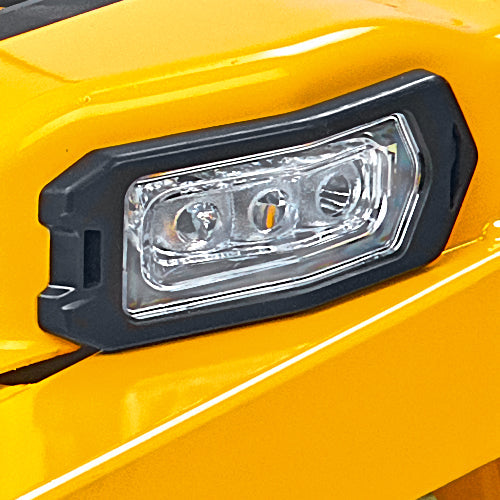

Ultra-bright LED Headlights
Provides the best visibility when working in the morning and evening twilight.

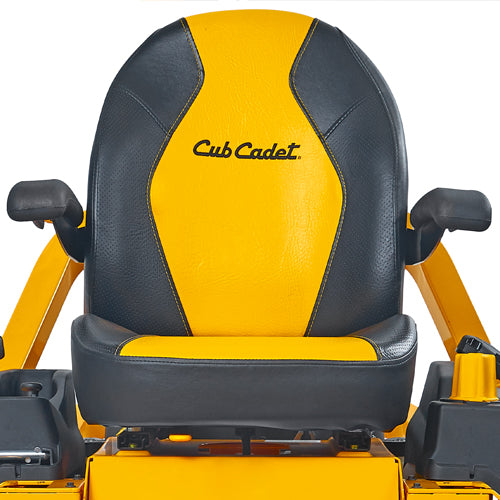

Individually Adjustable Comfort Seat
With a high backrest and armrests for comfortable, fatigue-free work.

Technical Specifications:

ENGINE (XZ6 S117)

• Engine type: Kawasaki

• Engine displacement (cm³): 726

• Power output (kW/min-1): 13.4 / 2450

• Start: V-Twin cylinder

• Fuel tank capacity (L): 13.25

• Lubrication: Oil pump with oil filter

DRIVE SYSTEM

• Drive: Dual Hydrostatic

• Transmission: Dual Hydrostatic

• Speed control: Double foot pedal

CUTTING SYSTEM

• Recommended area performance (m²/h): 10,500

• Cutting width: 117 cm

• Cutting height: 25-114 mm

• Number of blades: 2

• Mowing options: 3-in-1

• Deck engagement: Electromagnetic

• Cutting stages: 15 positions

• Deck rollers: 2

• Mulch kit: Standard

DISCHARGE SYSTEM

• Grass catcher (capacity): Optional 230

• Grass deflector: Standard

FRAME

• Turning radius (cm): 0

• Tires (front/rear) (inches): 13 x 6.5 / 20 x 8

• Wheel bearings: Sleeve bearings

ELECTRICAL

• Headlights: LED

• Battery: 210 CCA AGM

• Hour meter / Service indicator: – / Standard

• Safety systems: Standard

COMFORT

• Seat type: High backrest with armrests

• Seat adjustment: Quick-adjust lever

• Steering wheel: Adjustable soft-grip steering wheel

• Toolbox: Standard

• Reverse mowing option (RevTEK): Standard

• Battery charger: Optional (196-967-678)

DIMENSIONS

• LpA / LwA / LwAg (dB): 85.4 / 98.9 / 100

• Vibration value (body) (K-factor) (m/s²): 0.3 / 0.2

• Vibration value (arm) (K-factor) (m/s²): 3.0 / 1.5

• Dimensions (L / W / H) (cm): 210 / 142 / 116

• Weight: 285 kg
