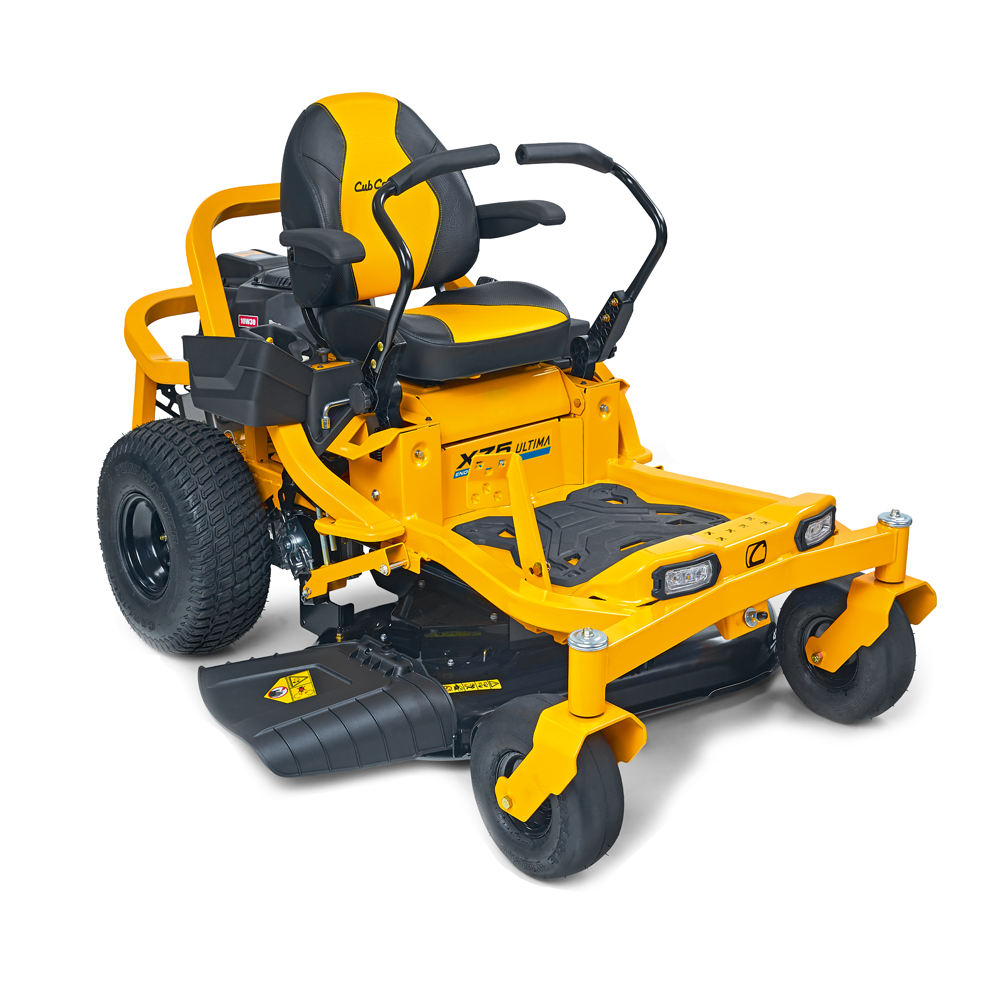

Cub Cadet XZ5 L137 ULTIMA

The innovative steering lever technology, combined with the extremely robust construction made from high-load components and high-performance engines, makes the XZ5 Series the ideal helpers for large lawns.

Product Highlights:

• Extremely low vibration

• Extremely powerful

• Ultra-bright LED headlights

• Largest tires in its class

• Zero-Turn

• Strong machine with Zero-Turn

Product Details:

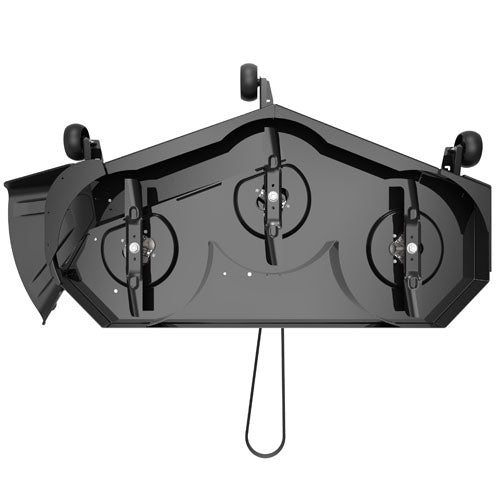

Extremely Robust
The extremely stable steel cutting deck and lightweight steel tube frame provide the XZ5 models with an exceptionally long lifespan.

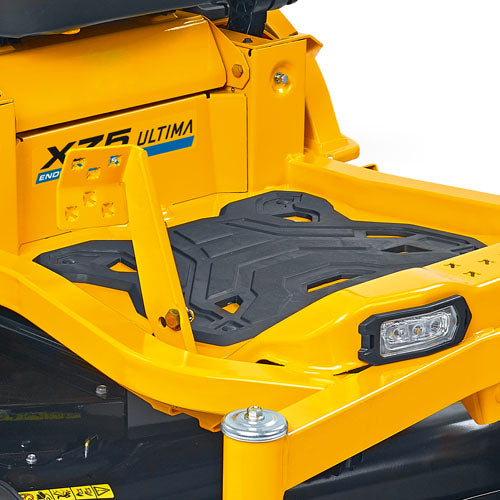

Extremely Low Vibration
Achieved through ergonomic soft grips and rubber foot mats.

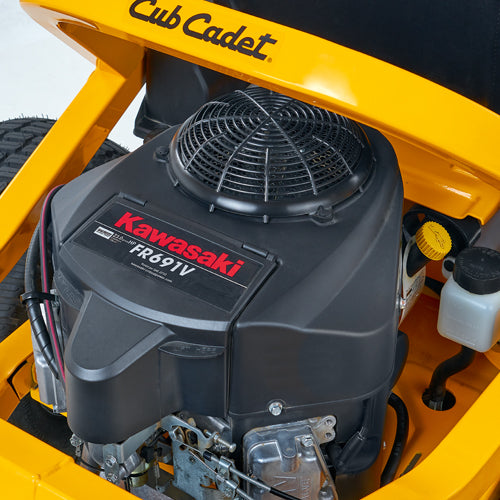

Extremely Powerful
Driven by high-performance Cub Cadet and Kawasaki engines, the XZ5 models reach up to 12 km/h and mow up to 50% faster than front mowers.

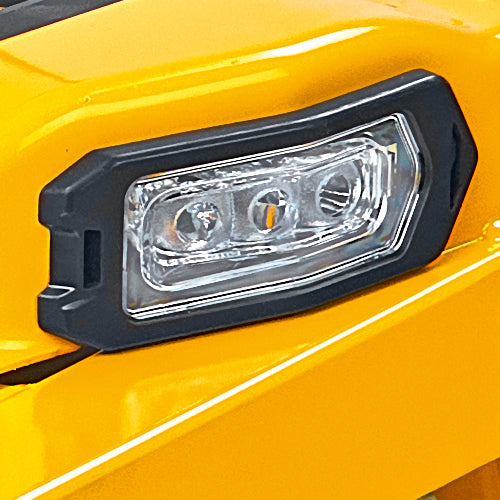

Ultra-bright LED Headlights
Provides optimal visibility when working in the morning and evening twilight.

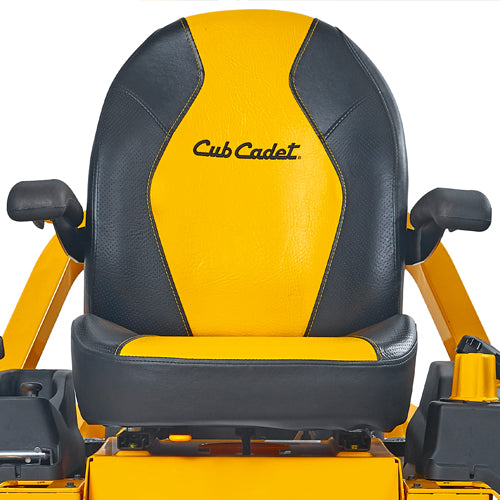

Individually Adjustable Comfort Seat
With a high backrest and armrests for comfortable, fatigue-free work.

Largest Tires in Its Class
The premium tires on the XZ5 127 and XZ5 137 models provide better traction. They also offer greater stability and control.

Technical Specifications:

ENGINE (XZ5 L137-ULTIMA)

• Engine type: Kawasaki OHV

• Engine displacement (cm³): 726

• Power output (kW/min-1): 14.5 / 2850

• Start: V-Twin cylinder

• Fuel tank capacity (L): 13.25

• Lubrication: Oil pump with oil filter

DRIVE SYSTEM

• Drive: Dual Hydrostatic

• Transmission: Dual Hydrostatic

• Speed control: Steering lever

CUTTING SYSTEM

• Recommended area performance (m²/h): 12,500

• Cutting width: 137 cm

• Cutting height: 25-114 mm

• Mowing options: 3-in-1

• Number of blades: 3

• Deck engagement: Electromagnetic

• Cutting stages: 15 positions

• Deck rollers: 2 + rollers

• Mulch kit: Standard

DISCHARGE SYSTEM

• Grass catcher (capacity): Optional 230

• Grass deflector: Standard

FRAME

• Bumper / Rear bumper: – / Steel tube frame

• Turning radius (cm): 0

• Tires (front/rear) (inches): 13 x 6.5 / 20 x 12

ELECTRICAL

• Headlights: LED

• Battery: 210 cca AGM

• Safety systems: Standard

COMFORT

• Seat type: High backrest with armrests

• Seat adjustment: Quick-adjust lever

• Steering wheel: 2-way steering lever with comfort grip

• Toolbox: Standard

• Reverse mowing option (RevTEK): Standard

DIMENSIONS

• LpA / LwA / LwAg (dB): 90.2 / 102.8 / 105

• Vibration value (body) (K-factor) (m/s²): 0.5 / 0.3

• Vibration value (arm) (K-factor) (m/s²): 3.9 / 2.0

• Dimensions (L / W / H) (cm): 203 / 164 / 117

• Weight: 312 kg
