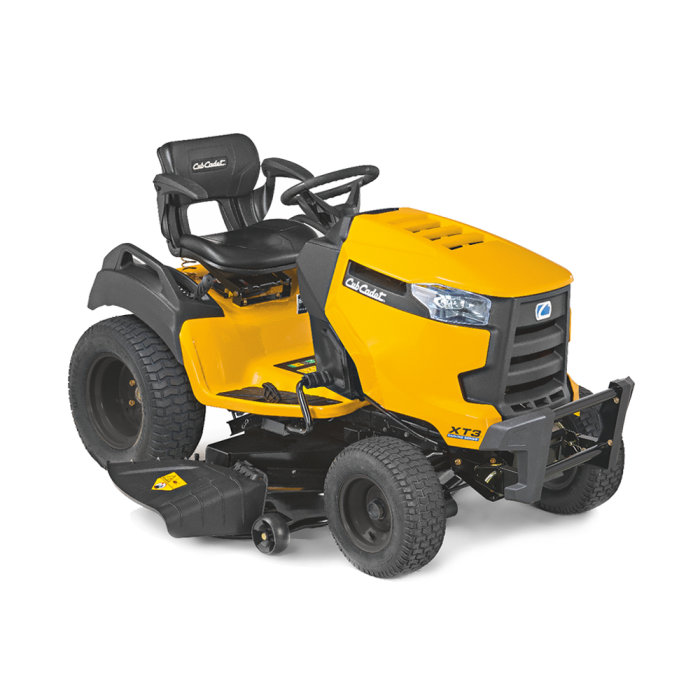

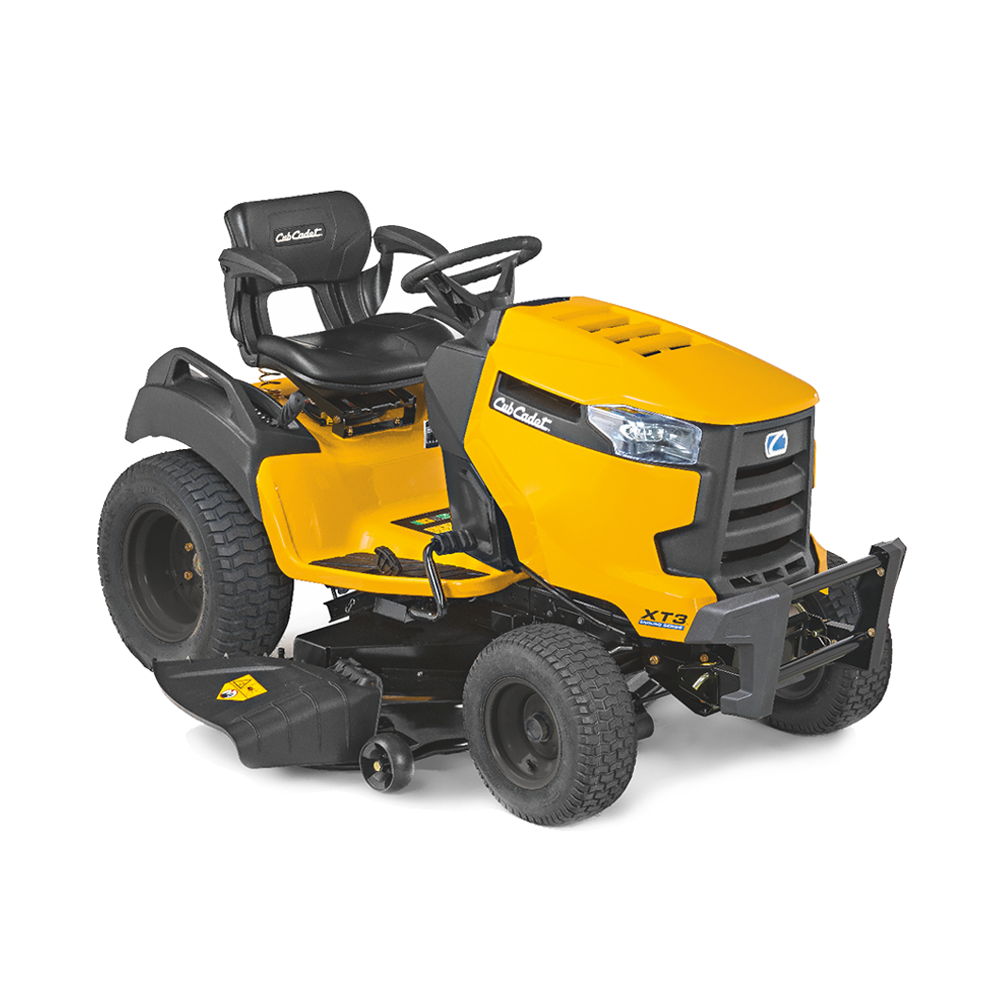

Cub Cadet XT3 QS127

Built for the toughest tasks, powered by true powerhouses, and equipped with ultra-strong components – the Cub Cadet XT3 series are the ultimate lawn tractors. The XT3 mowers have plenty of power for cutting thick, tall grass, transporting large loads, and handling the heaviest soil cultivation attachments.

Product Highlights:

• 360-liter grass collector capacity

• Powerful Kawasaki V-Twin engine

• Hydrostatic transmission

• Anti-dust system

• 17 cm turning radius

• A true powerhouse with ultra-strong components

Product Features:

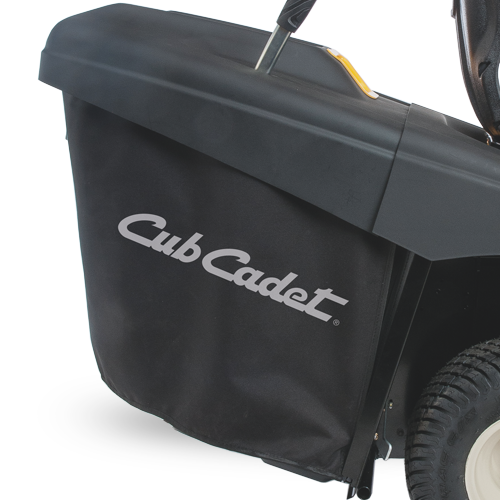

Market-leading Cutting, Catching, and Mulching System
For the best mowing results in the shortest time.

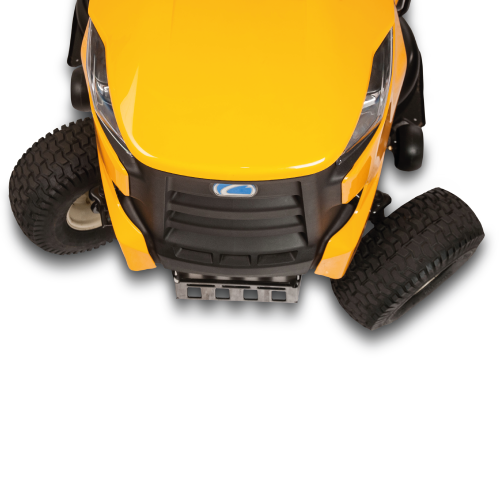

Smallest Turning Radius on the Market
Thanks to innovative TIGHT TURN technology, offering unmatched efficiency even in tight spaces.

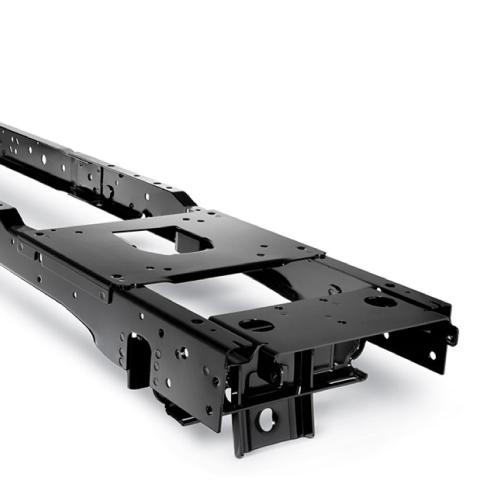

Extremely Sturdy and Corrosion-Resistant Frame
Twist-free frame construction for maximum durability.

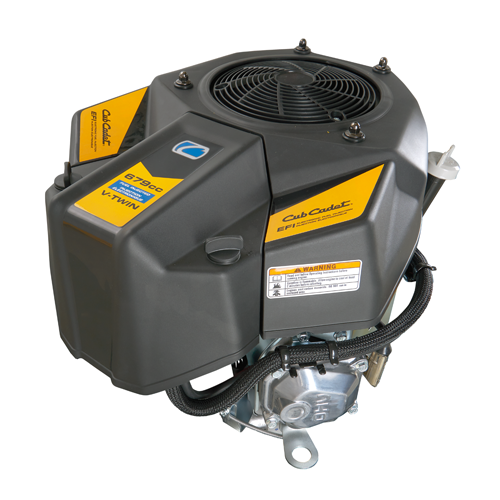

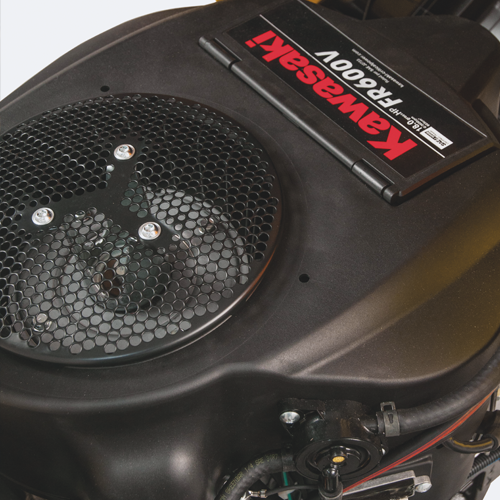

Powerful Kawasaki V-Twin Engine
A twin-cylinder engine designed for demanding terrain, providing exceptional smoothness and low fuel consumption.

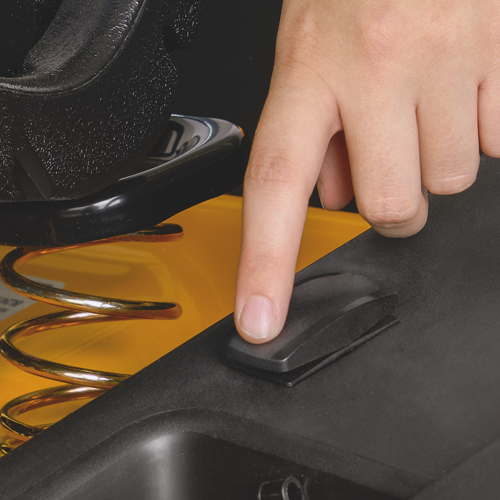

Electric Grass Collector Emptying
With the press of a button, the grass collector lifts and empties the clippings, even with high volumes, effortlessly. Universal accessory available for all XT models from 2018 onwards.

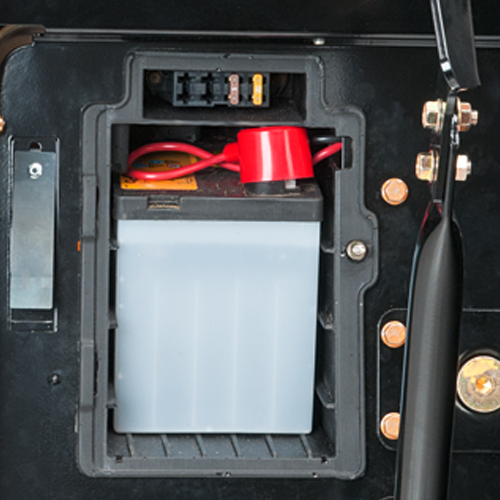

Powerful Battery
Significantly extended lifespan for longer performance. The 22 Ah sealed battery eliminates the need for acid filling.

Technical Specifications:

ENGINE (XT3 QS127)

• Engine type: Kawasaki

• Displacement (cm³): 726

• Power output (kW/min-1): 13.7 / 2800

• Start: V-Twin cylinder

• Fuel tank capacity (l): 11.4

DRIVE SYSTEM

• Transmission: Hydrostatic

• Airspeed (f/r): Continuously variable

• Speed control: Foot pedal

• Cruise control: Standard

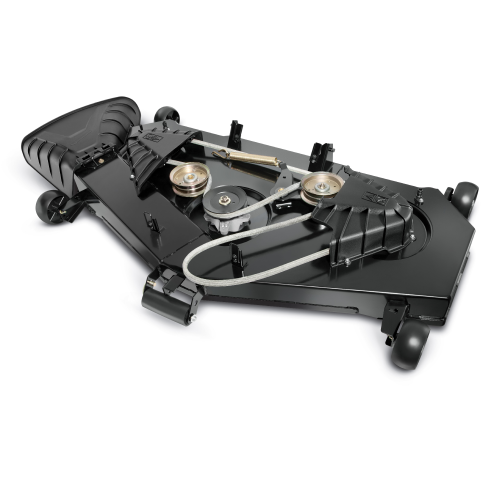

CUTTING SYSTEM

• Recommended area performance (m²/h): 10,000

• Cutting width: 127 cm

• Cutting height: 25-100 mm

• Number of blades: 3

• Deck engagement: Electric push-button

• Cutting stages: 12 positions

• Deck rollers: 4 ball-bearing deck wheels + rollers

• Wash nozzle / Mulch kit: Standard / Standard

DISCHARGE SYSTEM

• Grass collector (capacity) (l) / Accessories no.: Optional 210 / Optional (19A30018100)

• Fill level indicator / Grass deflector: – / Standard

FRAME

• Front axle: Cast iron

• Bumper: Bull-bar bumper

• Turning radius (cm): TIGHT TURN xTREME 17

• Tires (front/rear) (inches): 16 x 6.5–8 / 22 x 9.5

• Wheel bearings: Ball bearings

• Frame: Fully robot-welded frame

ELECTRICAL

• Headlights: LED

COMFORT

• Seat type: Cut & Sew, high backrest

• Seat adjustment: Comfortable diagonal seat adjustment

• Steering wheel: Ergonomically designed with a pleasant grip

• Toolbox / Cup holder: Standard / Standard

• Reverse mowing option (RevTEK): Standard

DIMENSIONS

• LpA / LwA / LwAg (dB): 90.6 / 104.2 / 105

• Vibration value (body) (K-factor) (m/s²): 0.39 / 0.5

• Vibration value (arm) (K-factor) (m/s²): 2.4 / 1.5

• Dimensions (L / W / H) (cm): 197 / 155 / 110

• Weight: 260 kg
