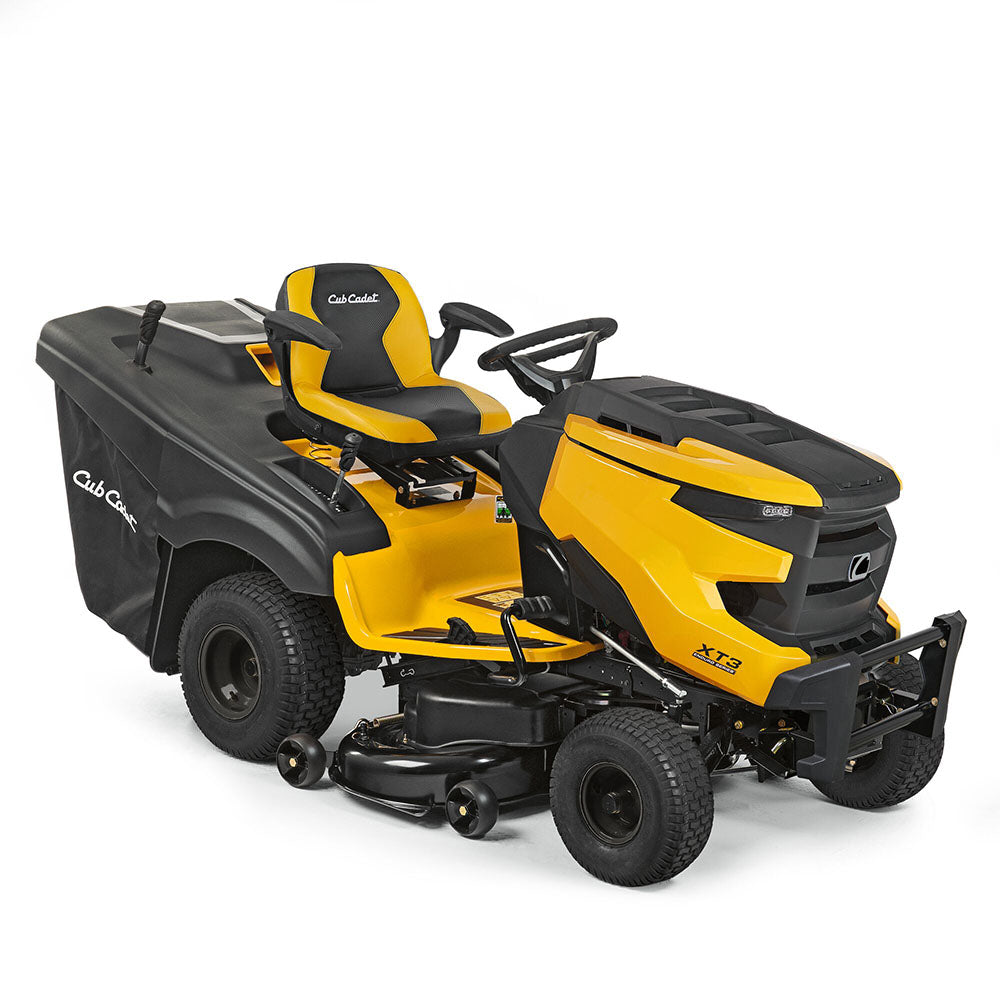

Cub Cadet XT3 QR106

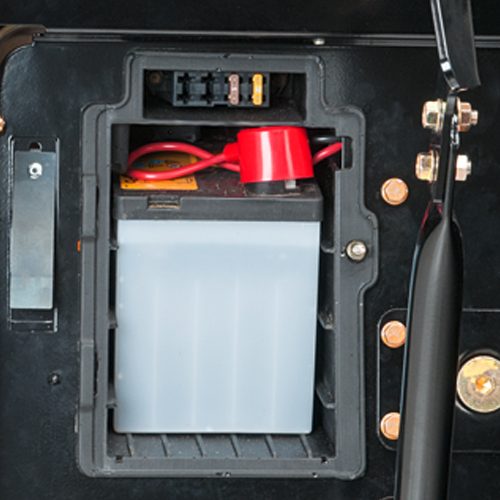

Significantly extended lifespan ensures longer performance. The 22 Ah wet battery no longer requires acid filling.

Technical Specifications:

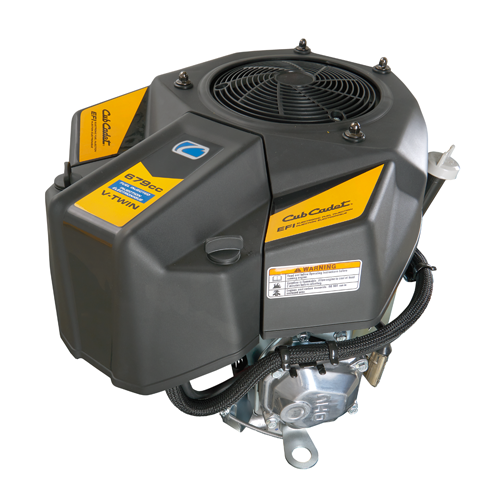

Engine

• Model: XT3 QR106

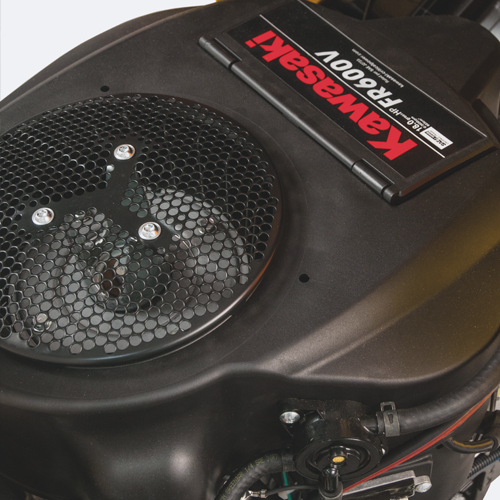

• Engine Type: Kawasaki

• Engine Displacement (cm³): 726

• Output Power (kW/min-1): 11.8 / 2200

• Start: V-Twin Cylinder

• Fuel Tank Capacity (l): 11.4

Drive System

• Transmission: Hydrostatic

• Air Speed (forward/reverse): Continuously variable

• Speed Control: Foot pedal control

• Cruise Control: Standard

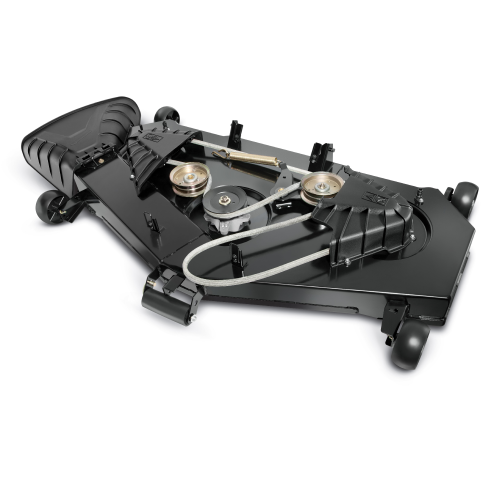

Cutting System

• Recommended Area Coverage (m²/h): 8000

• Cutting Width: 106 cm

• Cutting Height: 25-100 mm

• Number of Blades: 2

• Blade Engagement: Electric push-button

• Cutting Height Positions: 12

• Deck Wheels: 4 ball-bearing deck wheels

• Washing Nozzle / Mulching Kit: Standard / Optional (196-550-000)

Discharge System

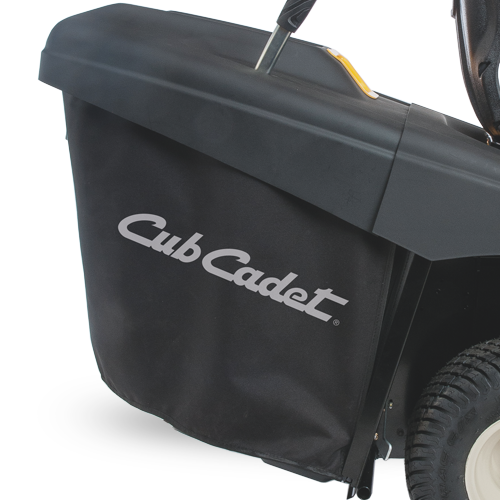

• Grass Collector Capacity (l) / Accessory No.: 360 l with Anti-Dust System / –

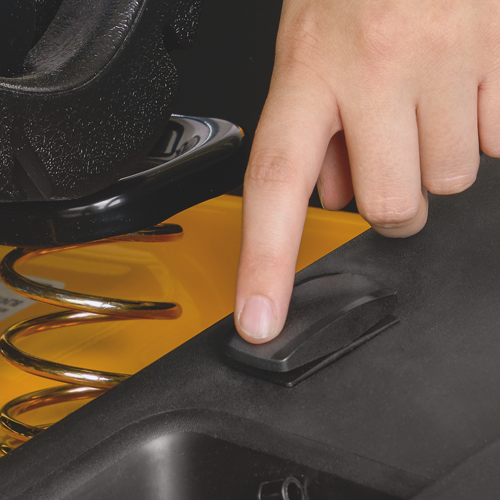

• Bag Opening / Cover: Curved Ergo-Telescopic handle / Plastic

• Fill-Level Indicator / Grass Deflector: With automatic blade shutdown / Optional (196-552A000)

Frame

• Front Axle: Cast iron

• Bumper: Bull-bar bumper

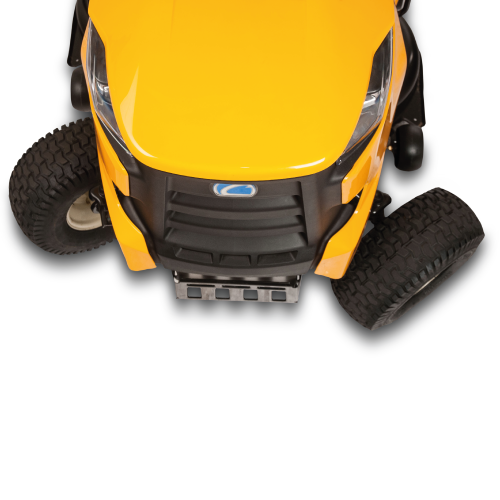

• Turning Radius (cm): TIGHT TURN xTREME 17

• Wheels (front/rear) (inches): 15 x 6 / 18 x 9.5

• Wheel Bearings: Plain bearings

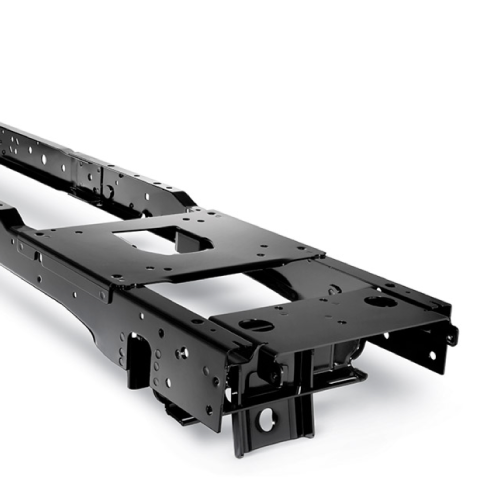

• Frame: Fully robot-welded frame

Electrical System

• Headlights: LED

Comfort

• Seat Type: Cut & Sew, high backrest

• Seat Adjustment: Comfortable diagonal seat adjustment

• Steering Wheel: Ergonomically designed with pleasant grip

• Toolbox / Cup Holder: Standard / Standard

• Reverse Mowing Option (RevTEK): Standard

Dimensions

• LpA / LwA / LwAg (dB): 83.7 / 98.9 / 100

• Vibration Value (Body) (K-factor) (m/s²): 0.2 / 0.5

• Vibration Value (Arm) (K-factor) (m/s²): 2.0 / 1.0

• Dimensions (L/W/H) (cm): 267 / 110 / 118

• Weight: 268 kg
