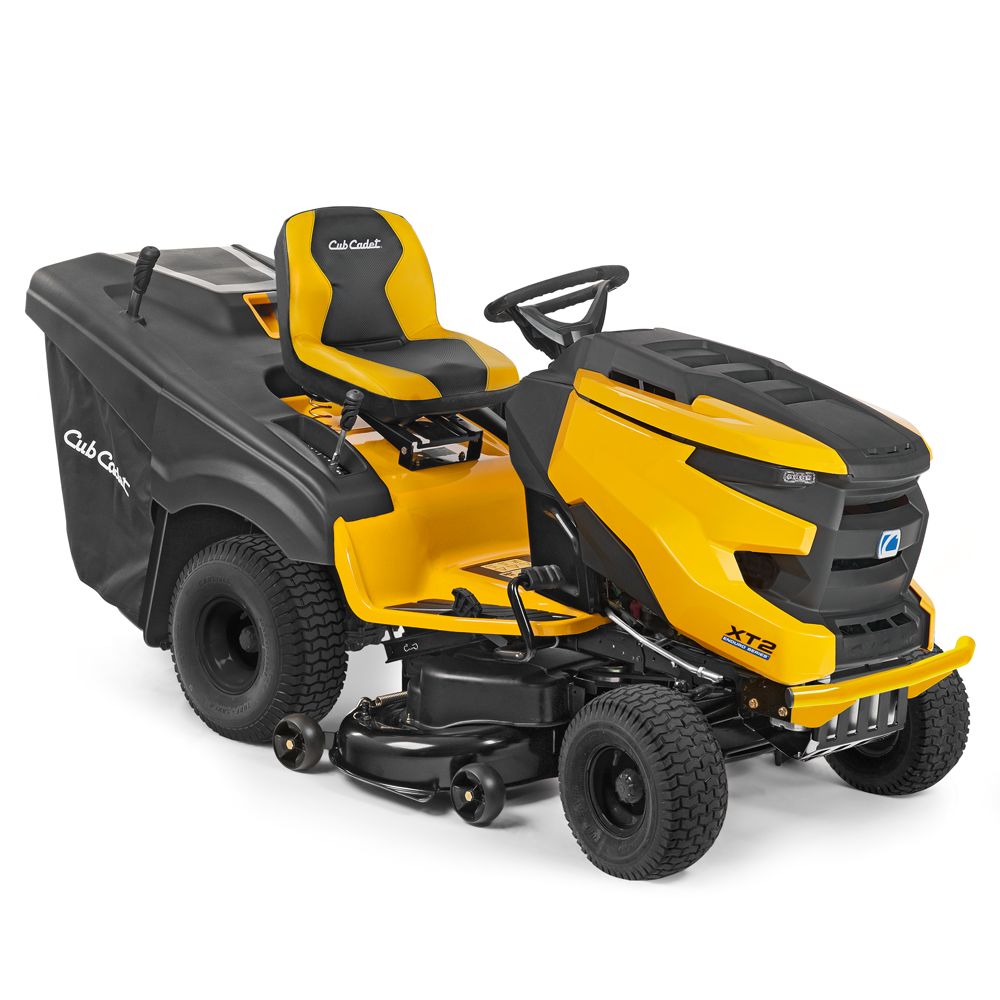

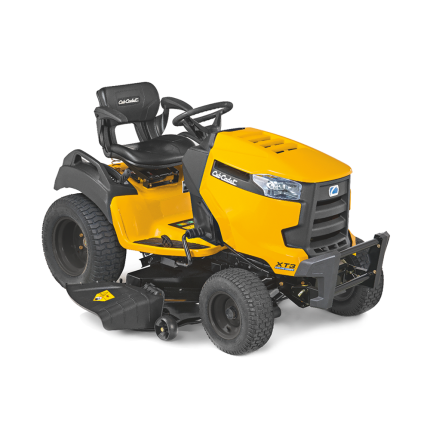

Cub Cadet XT2 QR106

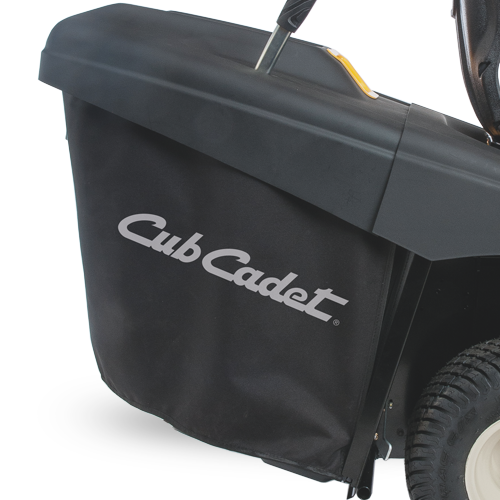

	MARKET-LEADING CUTTING, COLLECTION & MULCHING SYSTEM For the best mowing results in the shortest time.

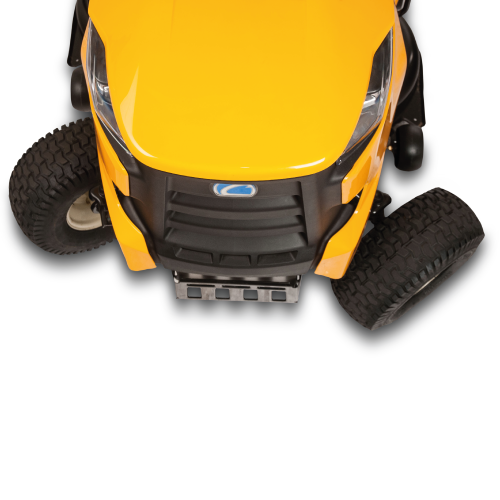

	SMALLEST TURNING CIRCLE ON THE MARKET Unmatched efficiency even in tight spaces thanks to innovative TIGHT TURN technology.

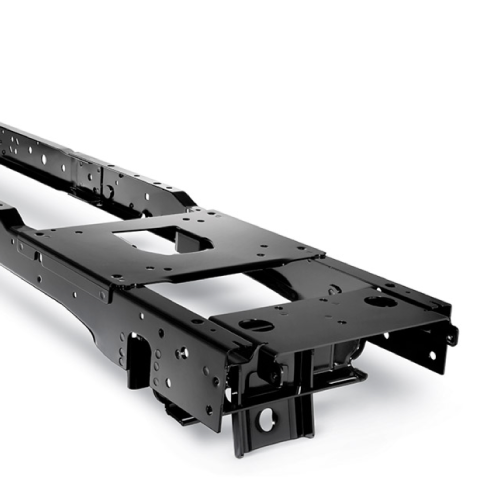

	EXTREMELY SOLID AND CORROSION-RESISTANT FRAME Torsion-free frame construction for maximum durability.

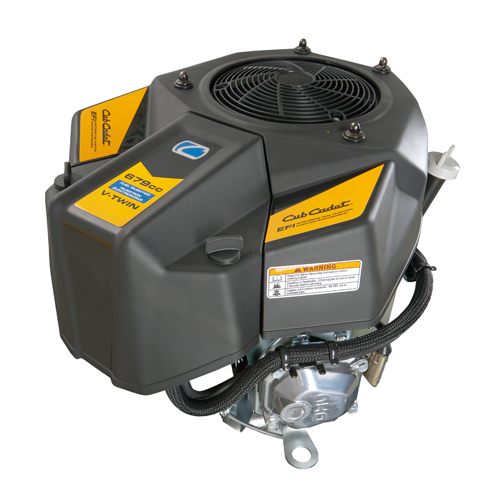

PERFECT MATCHING OF TRANSMISSION AND ENGINE POWER Optimal drive efficiency and the most powerful engine in its class.

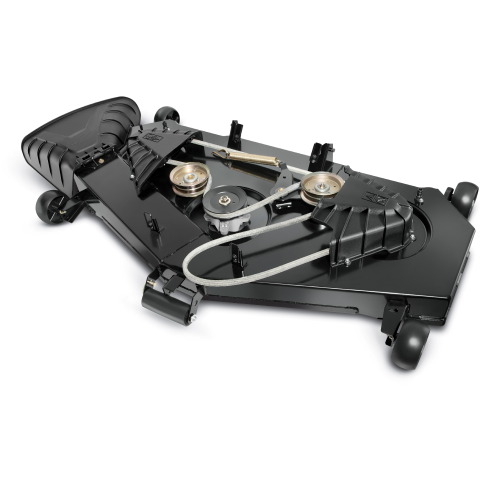

	ESPECIALLY RELIABLE V-BELT GUIDE Thanks to reduced V-belt tension and the sophisticated and perfect V-belt guidance without twisted V-belts, the Cub Cadet mower runs stably and for a long time.

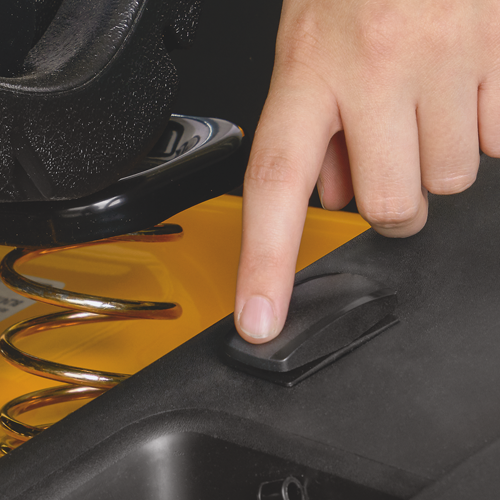

ELECTRIC COLLECTION BASKET EMPTYING At the touch of a button, the grass catcher lifts up and effortlessly tips out the clippings, even when the volume is high. Universal accessories can be retrofitted for all XT models from 2018 onwards.

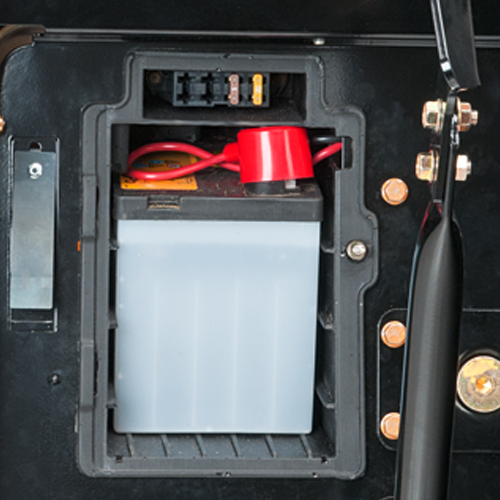

	POWERFUL BATTERY Significantly extended service life ensures longer performance. 22 Ah wet battery, no need to add acid.

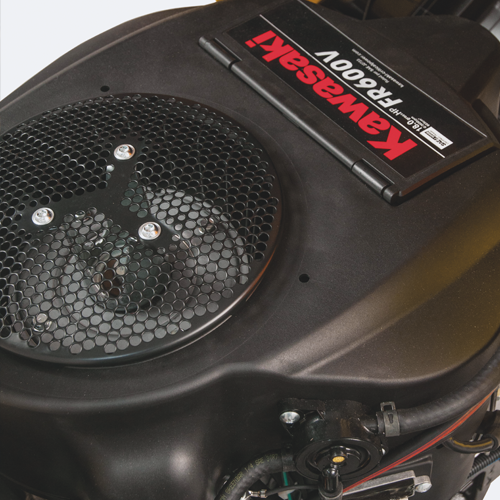

POWERFUL KAWASAKI V-TWIN ENGINE Two-cylinder engine for demanding terrain with particularly smooth running and low fuel consumption.

Technical Specifications

Engine

• Model: XT2 PR106

• Engine type: Kawasaki

• Displacement: 726 cm³

• Power output (kW/min-1): 11.8 / 2200

• Start: V-TWIN cylinder

• Fuel tank capacity: 11.4 liters

Drive System

• Transmission: Hydrostatic

• Speed control: Foot pedal

• Cruise control: Standard

Cutting System

• Recommended area performance: 8000 m²/h

• Cutting width: 106 cm

• Cutting height: 25-100 mm

• Number of blades: 2

• Deck engagement: Electric (button push)

• Cutting stages: 12 positions

• Deck rollers: 4 ball-bearing deck wheels

• Wash nozzle / Mulch kit: Standard / Optional (196-550-000)

Discharge System

• Grass catcher capacity: 320 liters / Optional (Anti-dust system 196-555-603)

• Grass catcher opening/cover: Curved Ergo-telescopic handle / Plastic

• Fill level indicator / Grass deflector: With automatic blade shutoff / Optional (196-552A000)

Frame

• Front axle: Cast iron

• Bumper: Standard, yellow

• Turning radius: TIGHT TURN xTREME 17 cm

• Wheels (front / rear): 15 x 6 / 18 x 9.5 inches

• Wheel bearings: Plain bearings

• Frame: Fully robot-welded

Electrical

• Headlights: LED

Comfort

• Seat type: Cut & Sew, high backrest

• Seat adjustment: Comfortable diagonal seat adjustment

• Steering wheel: Ergonomic with pleasant haptic feel

• Tool box / Cup holder: Standard / Standard

• Reverse mowing option (RevTEK): Standard

Dimensions

• Sound power level LwA / LpA / LwAg (dB): 83.7 / 98.6 / 100 dB

• Vibration value (body) (K-factor) (m/s²): 0.2 / 0.5

• Vibration value (arm) (K-factor) (m/s²): 2.0 / 1.0

• Dimensions (L / W / H) (cm): 250 / 110 / 118

• Weight: 268 kg
