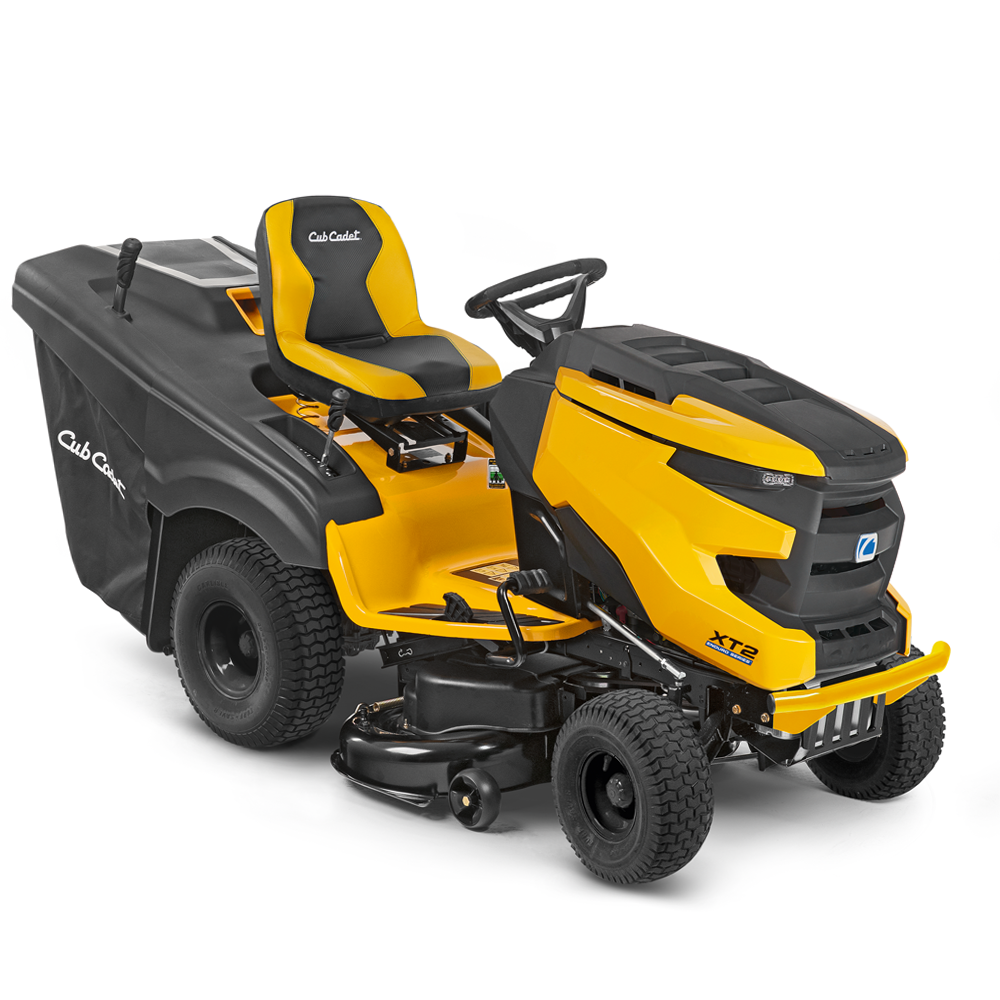

The Cub Cadet XT2 offers a higher level of power, control features, and durability. XT2 lawn tractors are the most maneuverable in the XT Series and are ideal for working in challenging terrain, transporting, and using additional accessories in every season.
Product Highlights:
-
Diagonally adjustable seat
-
Mechanically assisted cutting height adjustment
-
Deck engagement with the push of a button
-
Hydrostatic drive system
-
Electric grass catcher emptying
-
Power for large challenges
Product data

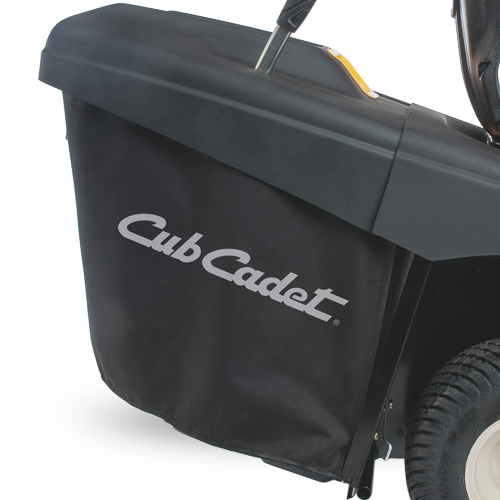

MARKET-LEADING CUTTING, COLLECTION & MULCHING SYSTEM |
|

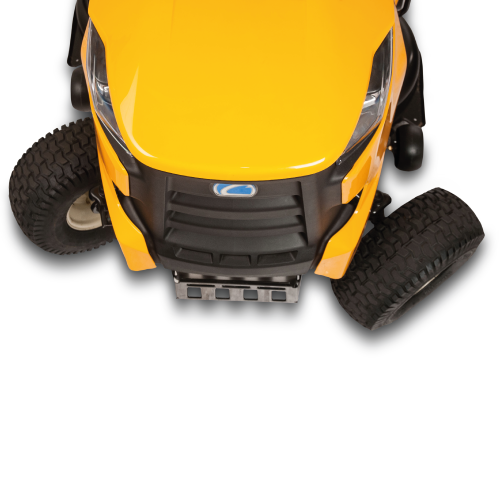

SMALLEST TURNING CIRCLE OF THE MARKET
Thanks to innovative TIGHT TURN technology, unsurpassed efficiency even in tight spaces
|
|

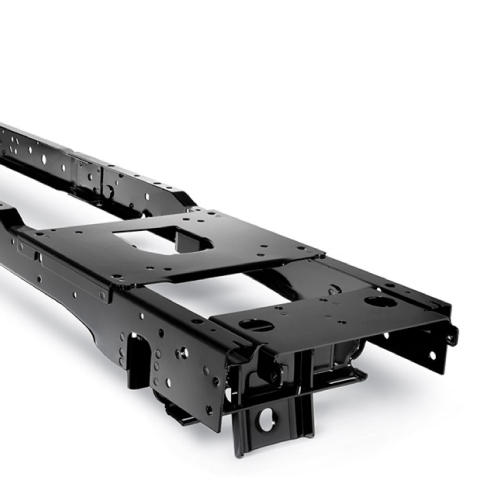

EXTREMELY SOLID AND CORROSION-RESISTANT FRAME
Torsion-free frame construction for maximum durability.
|
|
PERFECT MATCHING OF TRANSMISSION AND ENGINE POWER
Optimal drive efficiency and the most powerful engine in its class.
|
|

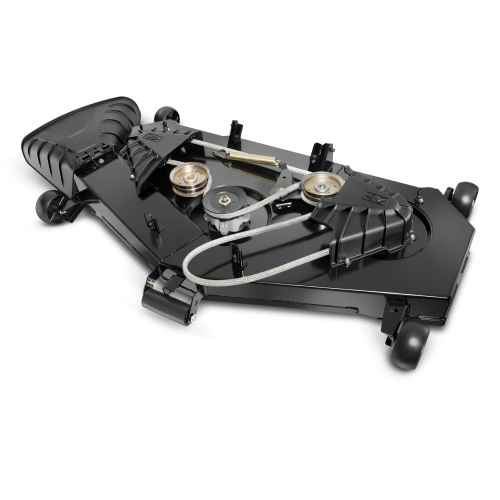

ESPECIALLY RELIABLE V-BELT GUIDE
Thanks to reduced V-belt tension and the sophisticated and perfect V-belt guidance without twisted V-belts, the Cub Cadet mower runs stably and for a long time.
|
|

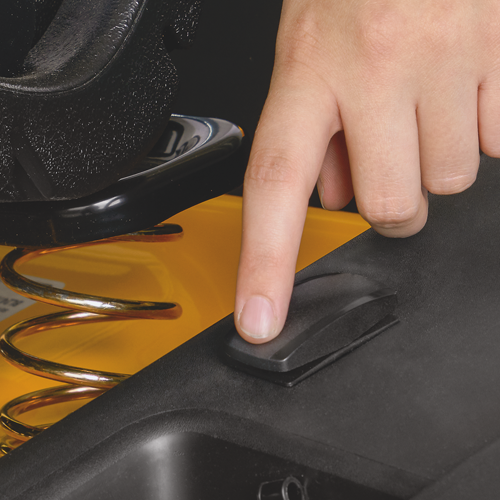

ELECTRIC COLLECTION BASKET EMPTYING
At the touch of a button, the grass catcher lifts up and effortlessly tips out the clippings, even when the volume is high. Universal accessories can be retrofitted for all XT models from 2018 onwards.
|
|

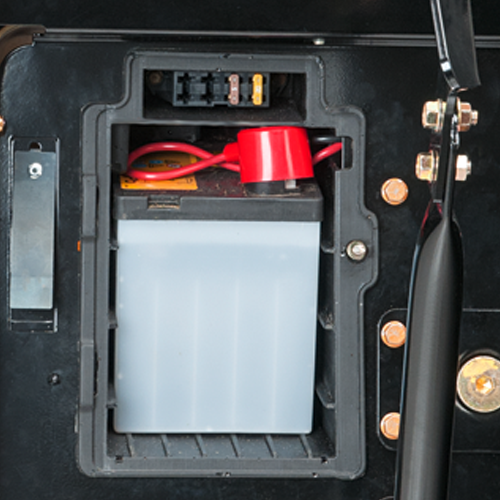

POWERFUL BATTERY
Significantly extended service life ensures longer performance. 22 Ah wet battery, no need to add acid.
|
Technical Specifications
ENGINE
-
Model: XT2 PR95
-

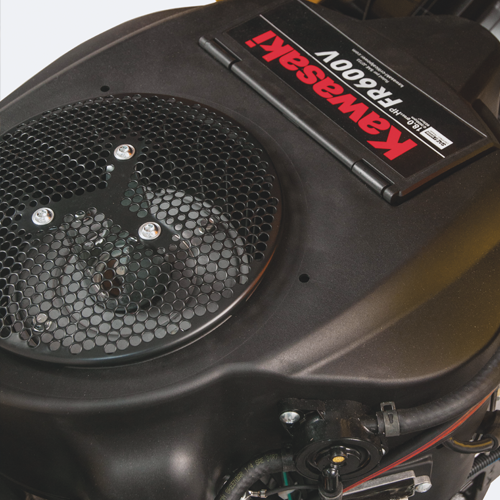

Engine Type: Kawasaki
-
Displacement (cm³): 603
-
Power Output (kW/min⁻¹): 9.3 / 2150
-
Start: V-Twin two-cylinder
-
Fuel Tank Capacity (l): 11.4
DRIVE SYSTEM
-
Transmission: Hydrostatic
-
Speed Control: Foot pedal control
-
Cruise Control: Standard
-
Speed Adjustment: Stepless (forward/reverse)
CUTTING SYSTEM
-
Recommended Area Performance (m²/h): 6000
-
Cutting Width: 95 cm
-
Cutting Height: 25-100 mm
-
Number of Blades: 2
-
Deck Engagement: Electric push-button
-
Cutting Positions: 12 settings
-
Deck Wheels: 2 ball-bearing deck wheels
-
Wash Nozzle/Mulch Kit: Standard/Optional (196-551-000)
DISCHARGE SYSTEM
-
Grass Bag Capacity (l)/Accessory No.: 320 l/optional (Anti-Dust System 196-555-603)
-
Bag Opening/Cover: Curved Ergo-Telescopic Handle/Plastic
-
Fill Level Indicator/Grass Deflector: Automatic blade shutoff/optional (196-552A000)
FRAME
-
Front Axle: Cast iron
-
Bumper: Standard, yellow
-
Turning Radius (cm): TIGHT TURN xTREME 17
-
Wheels (Front/Rear) (inches): 15 x 6 / 18 x 9.5
-
Wheel Bearings: Sleeve bearings
-
Frame: Fully robot-welded frame
ELECTRICS
-
Headlights: LED
COMFORT
-
Seat Type: Cut & Sew, high back
-
Seat Adjustment: Comfortable diagonal seat adjustment
-
Steering Wheel: Ergonomic with pleasant tactile feel
-
Toolbox/Cup Holder: Standard/Standard
-
Reverse Mowing Option (RevTEK): Standard
DIMENSIONS
-
LpA / LwA / LwAg (dB): 83.1 / 99 / 100
-
Vibration Value (Body) (K-Factor) (m/s²): 1.0 / 0.5
-
Vibration Value (Arm) (K-Factor) (m/s²): 5.0 / 1.5
-
Dimensions (L / W / H) (cm): 250 / 100 / 118
-
Weight: 254 kg
